Regulatory Compliance
Updated On 23 March 2025 | Min(s) read
Banks licensing the PSD2 module and using their own user interface should refer to the Payment endpoints described in this section. For the PSD2 Integrated solution, where banks license both Temenos Digital and Transact, the payment APIs used for Payment Approvals are outlined in the Digital User Guide.

Payment Initiation Service APIs

Temenos supported Berlin Group payment endpoints are described below:

PAYMENT INITIATION REQUEST
This API is used for a payment initiation at the ASPSP.

POST/v1/{payment-service}/{payment-product}

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}
Request
{
  "creditorAccount": {
    "iban": "FR7614006000000209615304162"
  },
  "creditorAgent": "CITIARBA",
  "creditorName": "Zeus",
  "debtorAccount": {
    "bban": "101036",
    "currency": "USD"
  },
  "endToEndIdentification": "EBACTOUT",
  "instructedAmount": {
    "amount": "100",
    "currency": "USD"
  },
  "remittanceInformationUnstructured": "TPS-testing-9"
}
Sample Response
{
  "transactionStatus": "RCVD",
  "_links": {
    "scaStatus": {
      "href": "/v1/payments/sepa-credit-transfers/PI201080NQ0MMQFY/authorisations/PI201080NQ0MMQFY-AUTH-1"
    },
    "scaRedirect": {
      "href": "https://www.temenosbank.com/Login"
    },
    "self": {
      "href": "/v1/payments/sepa-credit-transfers/"
    },
    "status": {
      "href": "/v1/payments/sepa-credit-transfers/PI201080NQ0MMQFY/status"
    }
  },
  "paymentId": "PI201080NQ0MMQFY",
  "transactionFeeIndicator": false
}

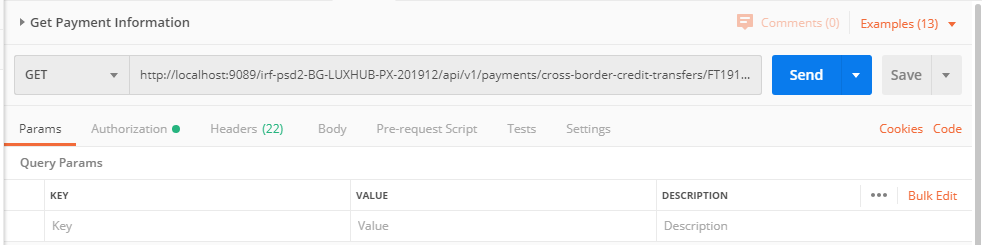

GET PAYMENT INFORMATION
This API is used to get the details of a payment object at the ASPSP.

GET/v1/{payment-service}/{payment-product}/{paymentId}

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}
Response
{
  "debtorAccount": {
    "bban": "101408",
    "iban": "GB12DEMO60161300101408",
    "currency": "EUR"
  },
  "creditorAddress": {},
  "creditorName": "Zeus",
  "transactionStatus": "RCVD",
  "creditorAccount": {
    "iban": "GB38DEMO60161300106372",
    "currency": "GBP"
  },
  "instructedAmount": {
    "amount": "100",
    "currency": "GBP"
  },
  "debtorName": "Harry Crisp",
  "remittanceInformationUnstructured": "TPS-testing-9"
}

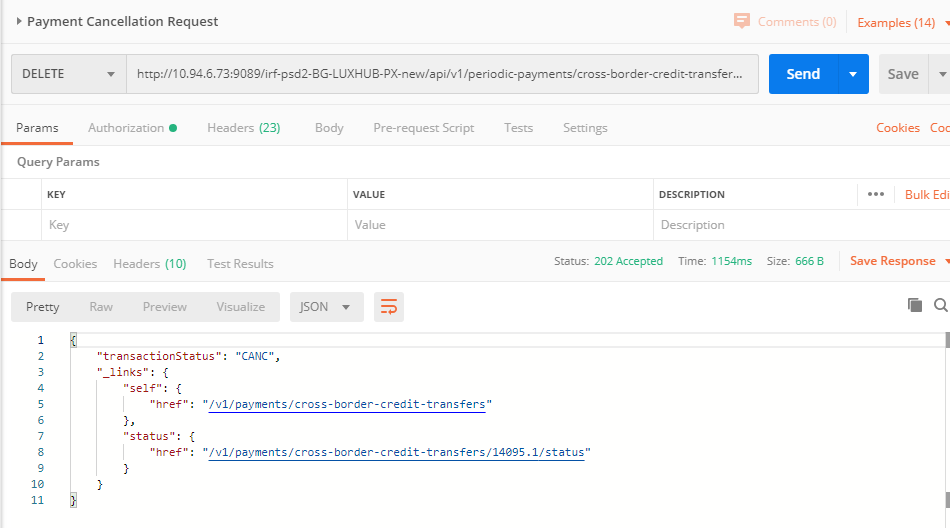

PAYMENT CANCELLATION REQUEST
This API is used to initiate the cancellation of a payment.

DELETE/v1/{payment-service}/{payment-product}/{paymentId}

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}
Response
{
  "transactionStatus": "CANC",
  "_links": {
    "scaStatus": {
      "href": "/v1/payments/sepa-credit-transfers/PI2010806T8D9TMM/cancellation-authorisations/PI2010806T8D9TMM-CANC-1"
    },
    "self": {
      "href": "/v1/payments/sepa-credit-transfers"
    },
    "status": {
      "href": "/v1/payments/sepa-credit-transfers/PI2010806T8D9TMM/status"
    }
  }
}

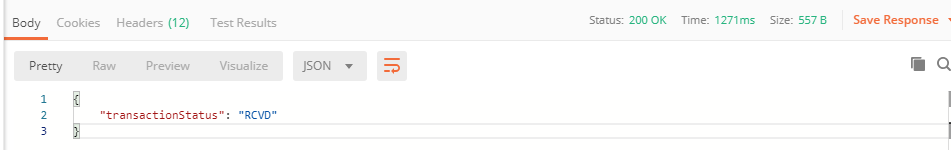

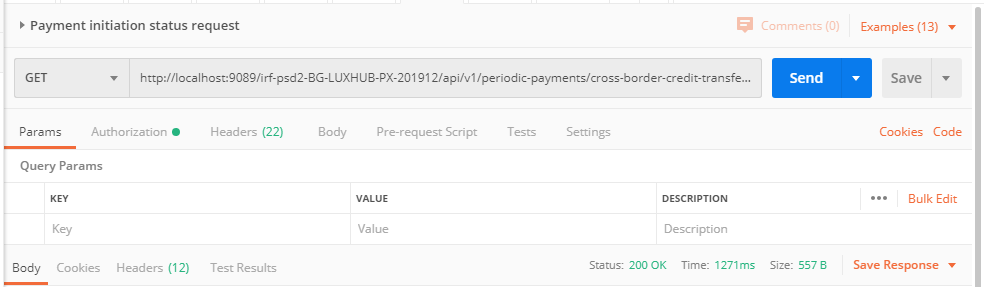

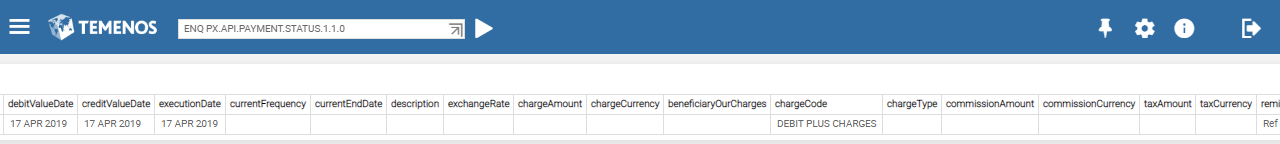

PAYMENT STATUS REQUEST
This API is used to retrieve the transaction status of a payment object at the ASPSP.

GET/v1/{payment-service}/{payment-product}/{paymentId}/status

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}/status
Response
{
  "transactionStatus": "ACSP"
}

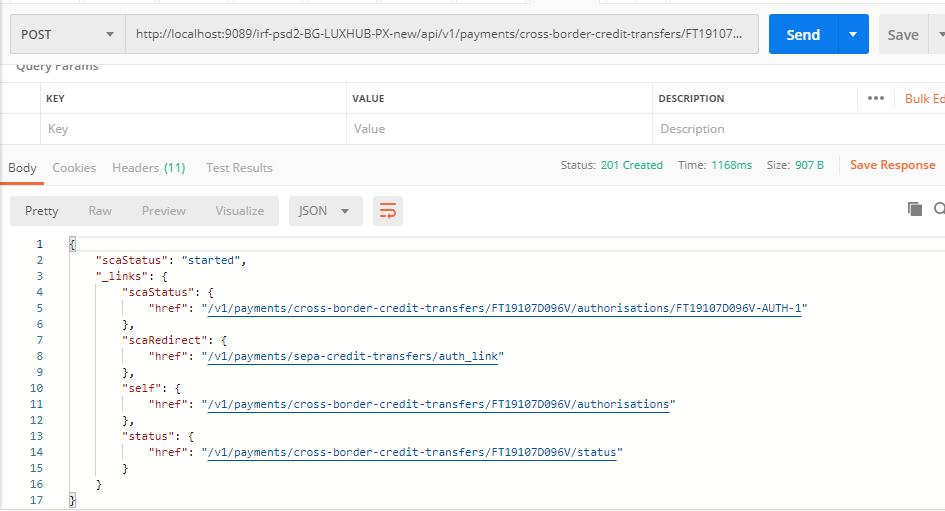

PAYMENT INITIATION AUTHORISATION
This API is used to create an authorisation sub-resource and start the authorisation process.

POST/v1/{payment-service}/{payment-product}/{paymentId}/authorisations

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}/authorisations
Request
-
Sample Response
{
  "scaStatus": "started",
  "_links": {
    "scaStatus": {
      "href": "/v1/payments/sepa-credit-transfers/PI201080NQ0MMQFY/authorisations/PI201080NQ0MMQFY-AUTH-1"
    },
    "scaRedirect": {
      "href": "https://www.temenosbank.com/Login"
    },
    "self": {
      "href": "/v1/payments/sepa-credit-transfers/PI201080NQ0MMQFY/authorisations"
    },
    "status": {
      "href": "/v1/payments/sepa-credit-transfers/PI201080NQ0MMQFY/status"
    }
  }
}

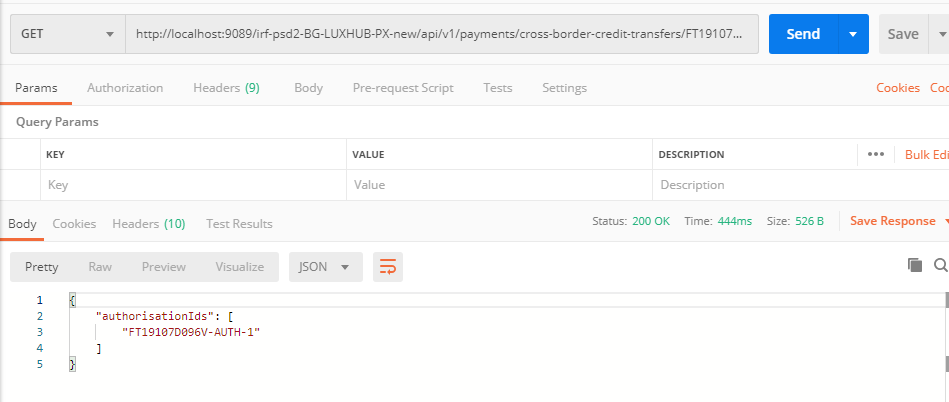

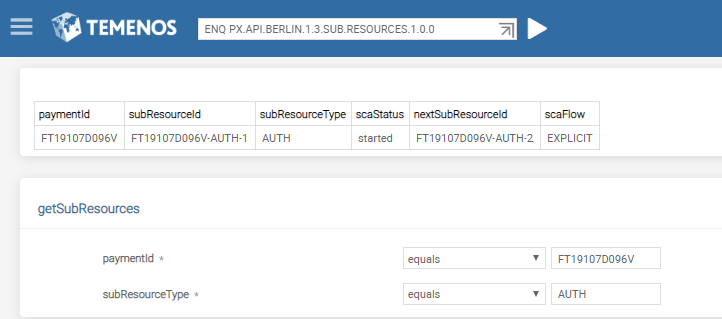

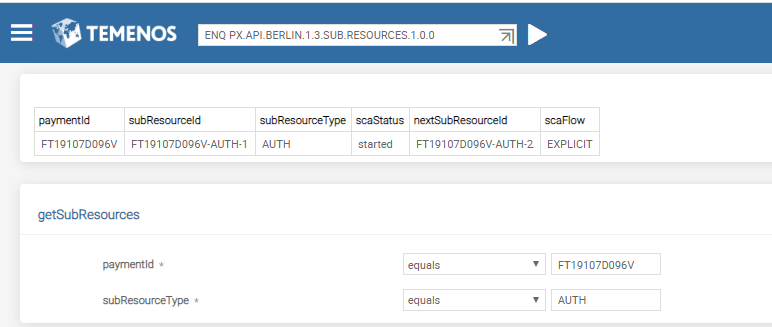

GET AUTHORISATION SUB-RESOURCES
This API is used to retrieve all the authorisation sub-resource IDs which have been created in the authorisation process.

GET/v1/{payment-service}/{payment-product}/{paymentId}/authorisations

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}/authorisations
Response
{
  "authorisationIds": [
    "PI2010806T8DDZ0W-AUTH-1"
  ]
}

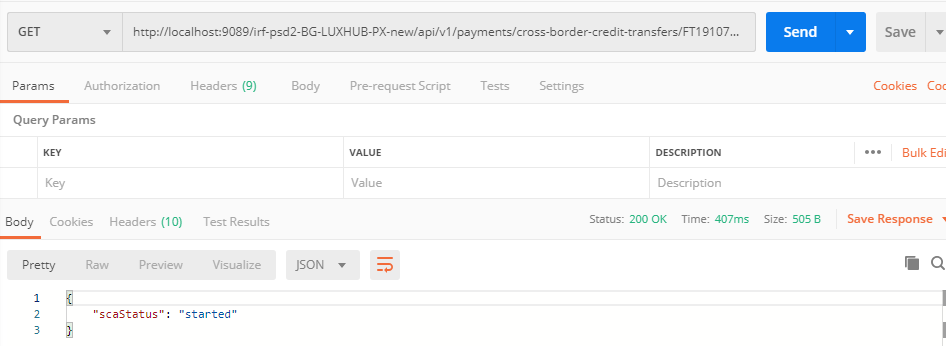

GET SCA STATUS OF AUTHORISATION SUB-RESOURCE
This API is used to retrieve the SCA status of a payment initation's authorisation sub-resource IDs which have been created in the authorisation process.

GET/v1/{payment-service}/{payment-product}/{paymentId}/authorisations/{authorisationId}

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}/authorisations/{authorisationId
Response
{
  "scaStatus": "finalised"
}

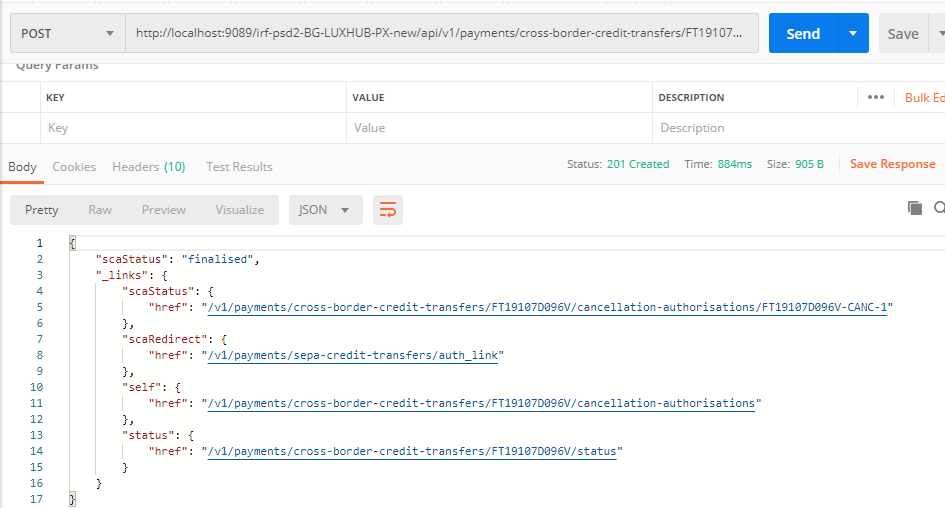

PAYMENT CANCELLATION AUTHORISATION
This API is used to create an authorisation sub-resource and start the authorisation process.

POST/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations
Request
-
Sample Response
{
  "scaStatus": "finalised",
  "_links": {
    "scaStatus": {
      "href": "/v1/payments/sepa-credit-transfers/PI2010806T8DDZ0W/cancellation-authorisations/PI2010806T8DDZ0W-CANC-1"
    },
    "scaRedirect": {
      "href": "https://www.temenosbank.com/Login"
    },
    "self": {
      "href": "/v1/payments/sepa-credit-transfers/PI2010806T8DDZ0W/cancellation-authorisations"
    },
    "status": {
      "href": "/v1/payments/sepa-credit-transfers/PI2010806T8DDZ0W/status"
    }
  }
}

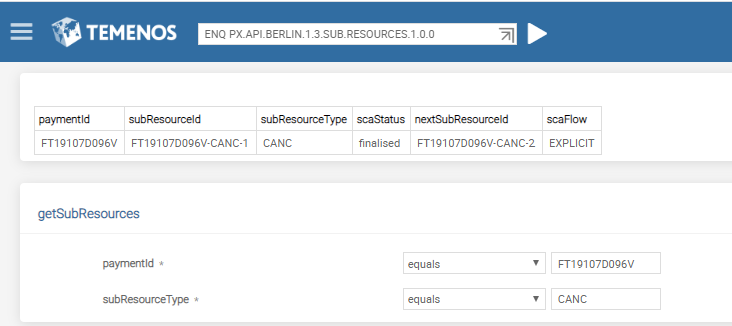

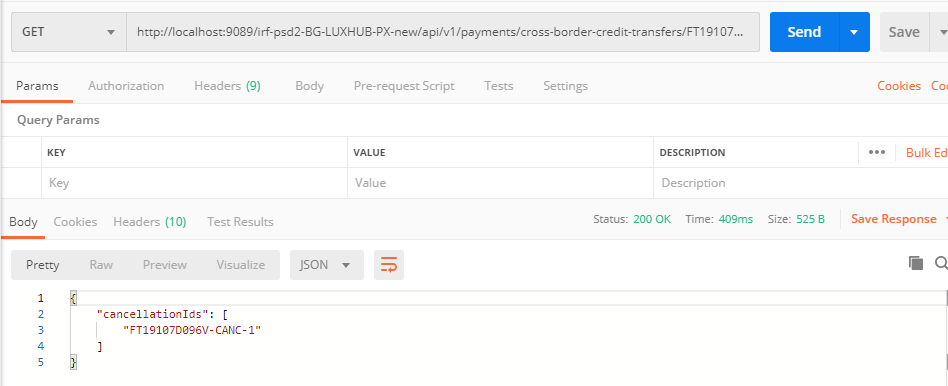

GET CANCELLATION AUTHORISATION SUB-RESOURCES
This API is used to retrieve all the cancellation authorisation sub-resource IDs which have been created in the cancellation authorisation process.

GET/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations
Response
{
  "cancellationIds": [
    "PI2010806T8DDZ0W-CANC-1"
  ]
}

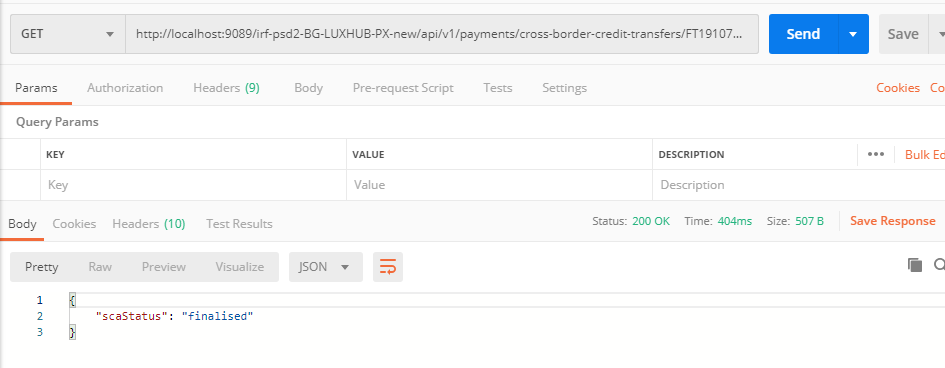

GET SCA STATUS OF CANCELLATION AUTHORISATION SUB-RESOURCE
This API is used to retrieve the SCA status of a payment cancellation's authorisation sub-resource ID which was created in the cancellation authorisation process.

GET/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations/{cancellationId}

Sample URL
http://127.0.0.1:9089/irf-psd2-BG-PX/api/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations/{cancellationId}
Response
{
  "scaStatus": "finalised"
}

Payment Initiation

A regulated TPP can initiate a payment using the POST​/v1​/{payment-service}​/{payment-product} endpoint. The TPP must be regulated as a PISP to initiate such a request.

A brief overview of the parameters and allowed values are explained below.

{payment-service}

Allowed values under the Berlin Group are:

payments Creates single payments. This indicates the need to create a PO record (depending on the bank’s payment system).
periodic-payments Creates repetitive payments. This indicates the need to create a Standing Order (STO) record.
bulk-payments Create bulk payments. This indicates the need to create a FTBM (FT.BULK.MASTER) to record the bulk level details and PO records for the bulk items contained within the Bulk

{payment-product}

Allowed values under the Berlin Group (v1.3.4) are:

sepa-credit-transfers EU SEPA payments. Supported by PO or STO.
cross-border-credit-transfers Cross-border payments. Supported by PO or STO.
target-2-payments Supported by PO. Not supported by STO.
instant-sepa-credit-transfers Supported by PO. Not supported by STO.

To assist payment initiation for PSD2, the following versions are available.

Endpoint Payment System Temenos Transact Version
payments
POST/v1/payments/sepa-credit-transfer PAYMENT.ORDER PAYMENT.ORDER,PX.API.PAYMENT.INITIATE.SEPA.1.1.0
POST/v1/payments/cross-border-credit-transfer PAYMENT.ORDER PAYMENT.ORDER,PX.API.PAYMENT.INITIATE.CBCT.1.1.0
POST/v1/payments/target-2-payments PAYMENT.ORDER PAYMENT.ORDER,PX.API.PAYMENT.INITIATE.TGT.1.1.0
POST/v1/payments/instant-sepa-credit-transfers PAYMENT.ORDER PAYMENT.ORDER,PX.API.PAYMENT.INITIATE.INSTPAY.1.1.0

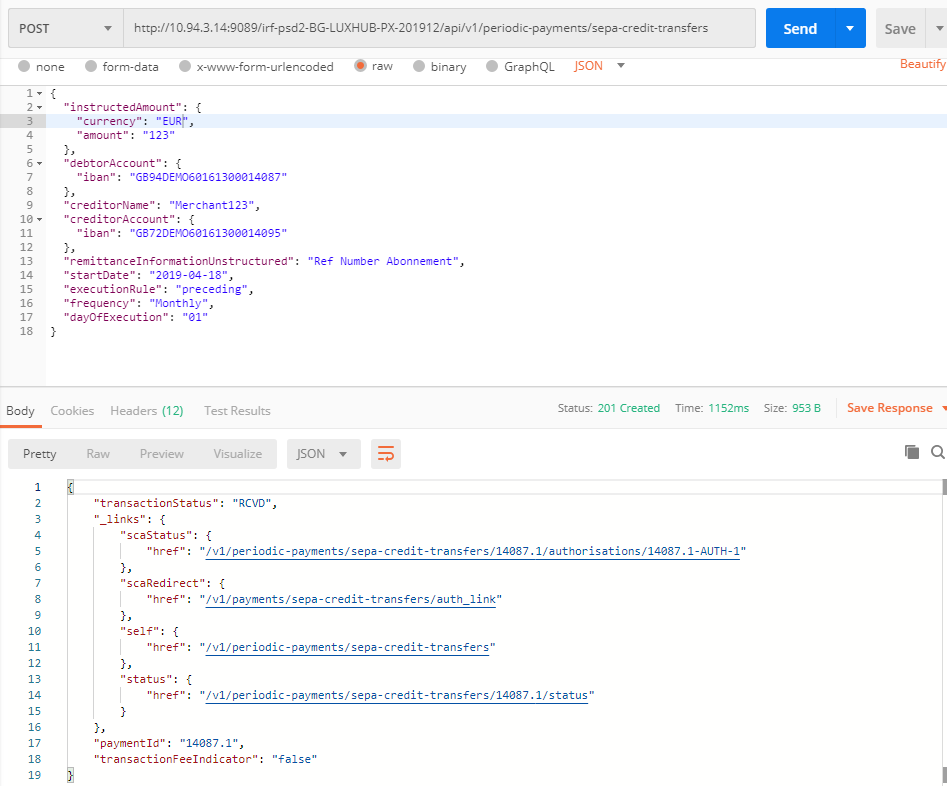

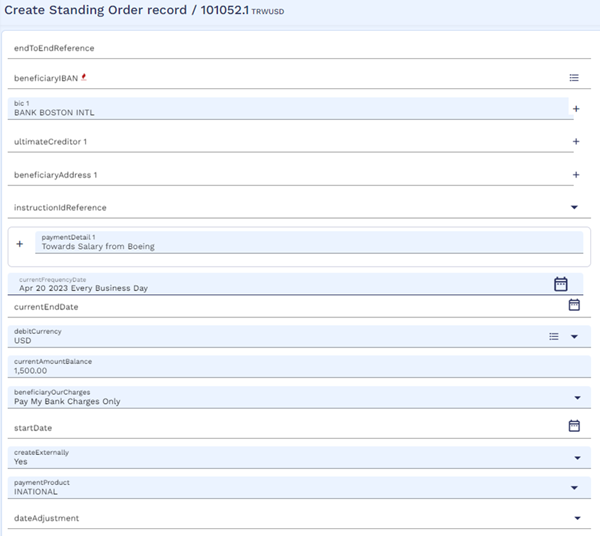

periodic-Payments

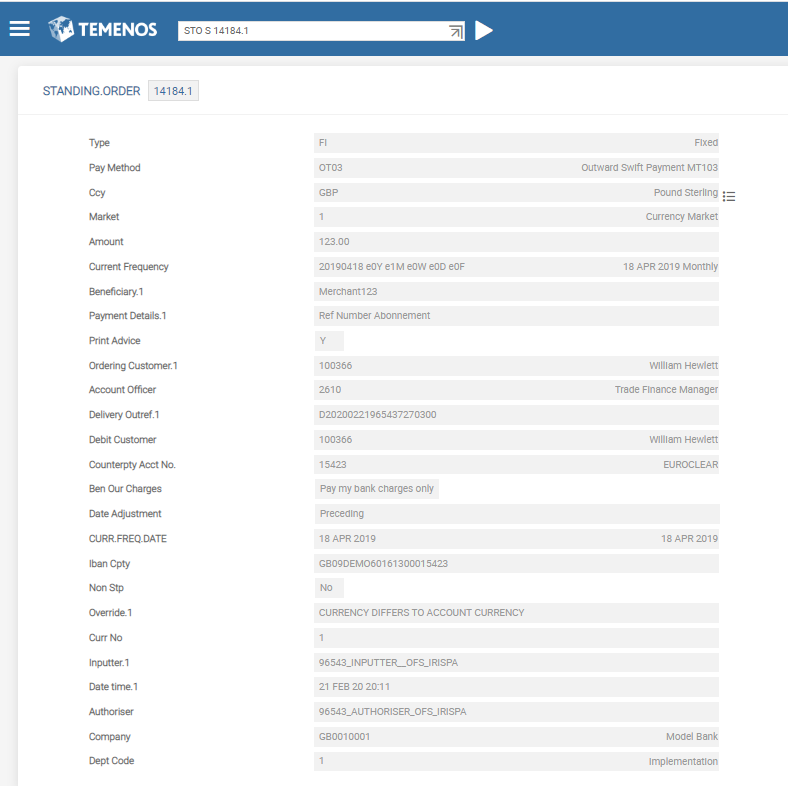

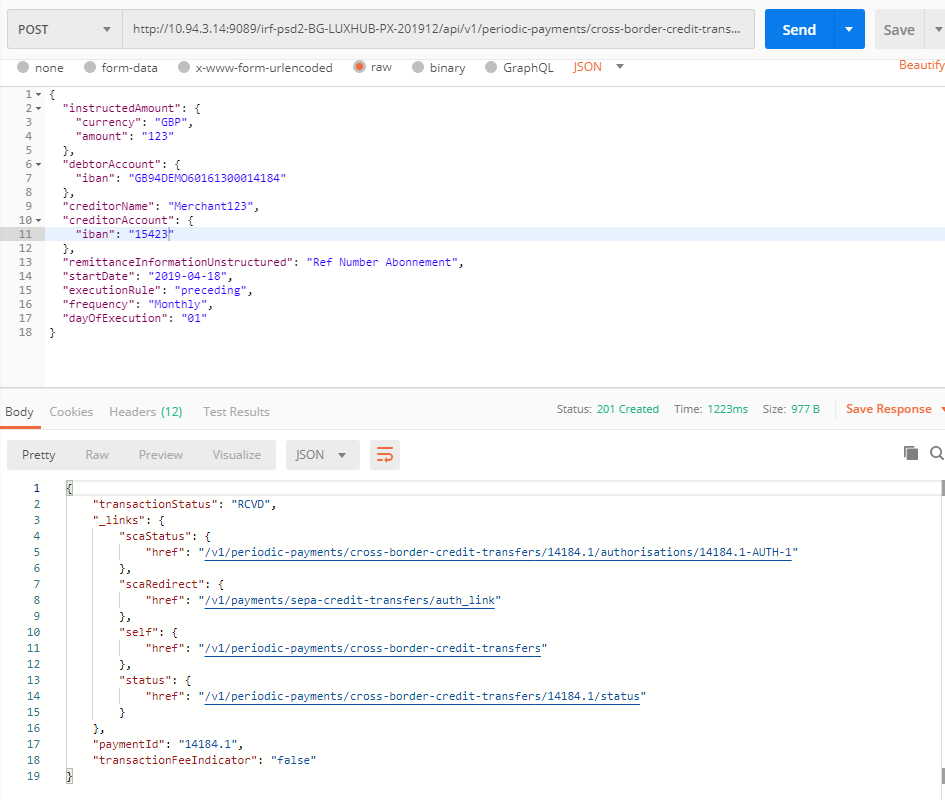

POST/v1/periodic-payments/sepa-credit-transfer STANDING.ORDER STANDING.ORDER,PX.API.SEPA.ONHOLD.1.0.0
POST/v1/periodic-payments/cross-border-credit-transfer STANDING.ORDER STANDING.ORDER,PX.API.CB.ONHOLD.1.0.0

When a payment record is initiated using the above endpoints, a corresponding record is created in PX.PYT.RESOURCE. The ID of the record matches that of the payment record.

Mapping for each API in Temenos Transact is explained below:

When the bank’s payment system is configured as PO and a POST/{payments}/{payment-product} request is created, the system creates a record in PAYMENT.ORDER using the following versions and logic.

For payment order records that have been initiated by a Third-Party Provider (TPP), the Order Initiation Type field in the PAYMENT.ORDER application is set as 'Initiated via TPP'.

The payment for a single SEPA payment is initiated using the above endpoint.

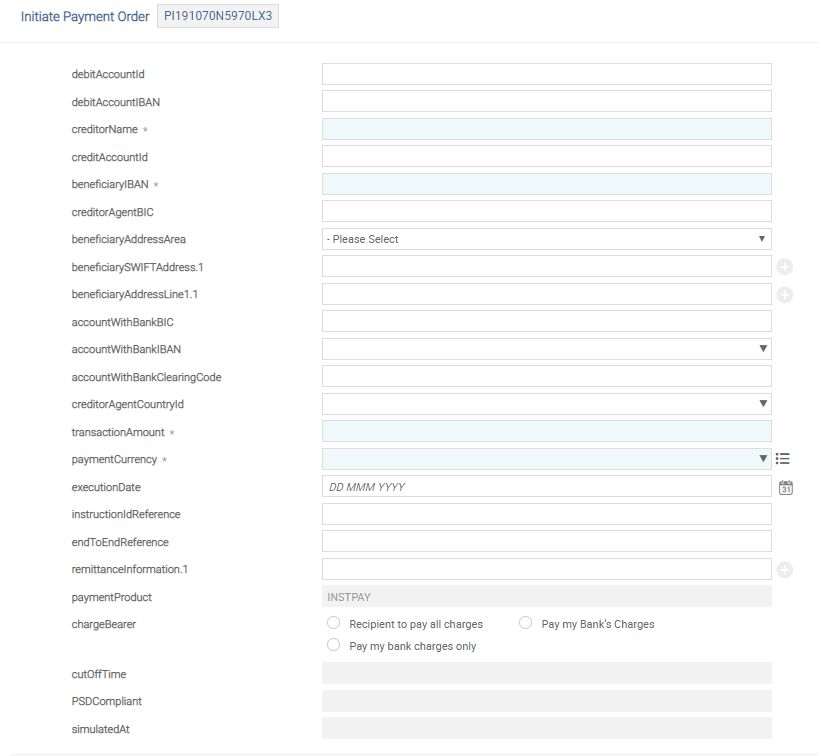

The PO created from this endpoint uses the below version:

  • PAYMENT.ORDER,PX.API.PAYMENT.INITIATE.SEPA.1.1.0

The incoming API directly populates this version.

This API creates a PAYMENT.ORDER record in LIVE with a status of ‘AwaitingExtSubmit’.

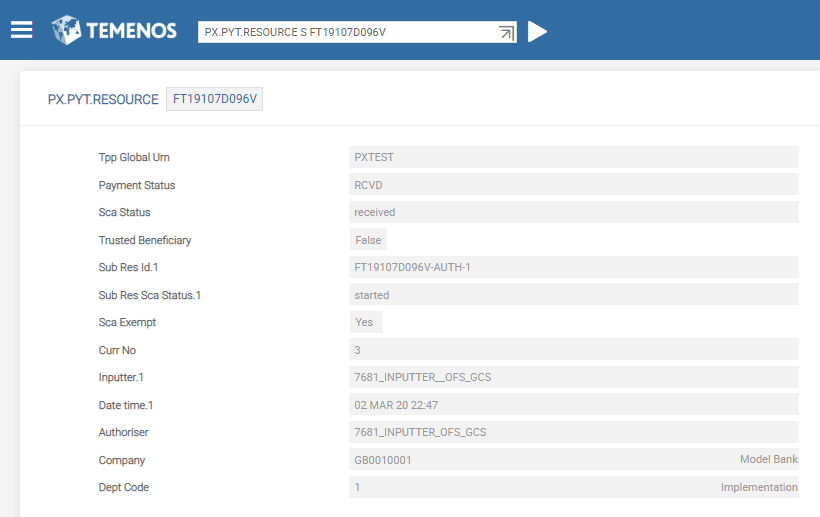

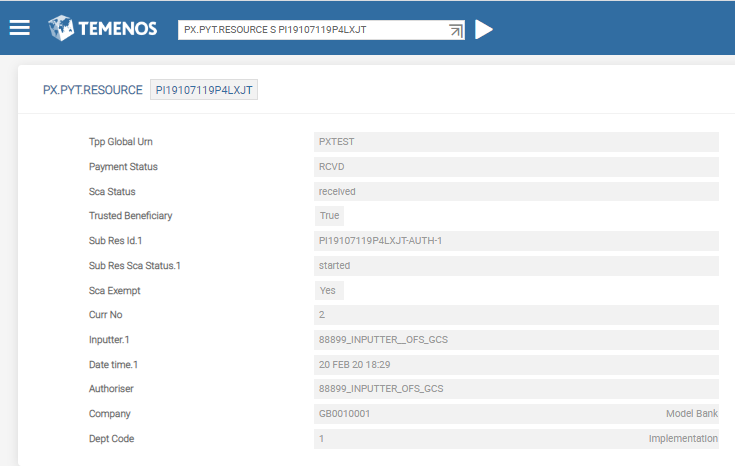

In parallel, the system additionally creates a PX.PYT.RESOURCE record with a corresponding Payment ID.

The system randomly generates the @ID of the record.

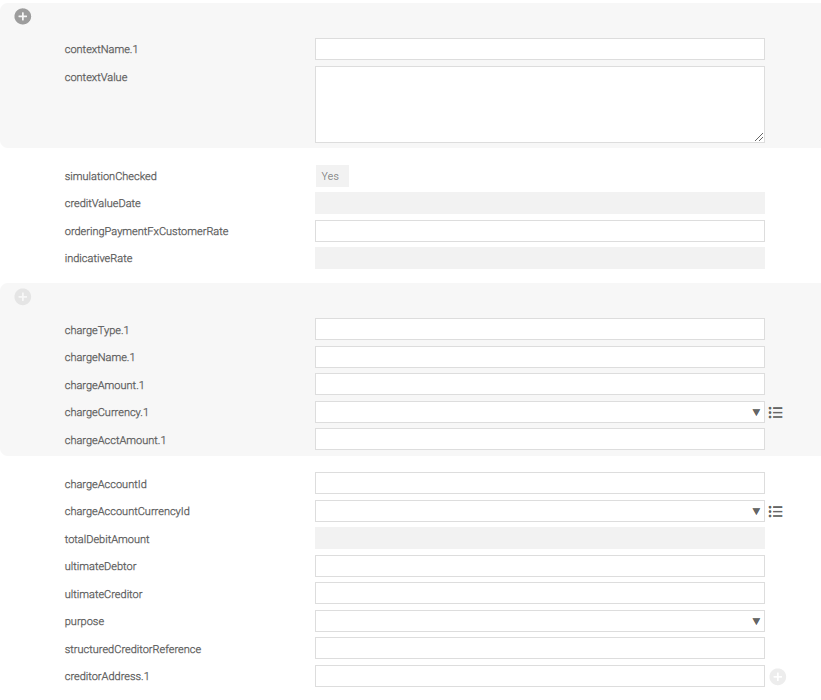

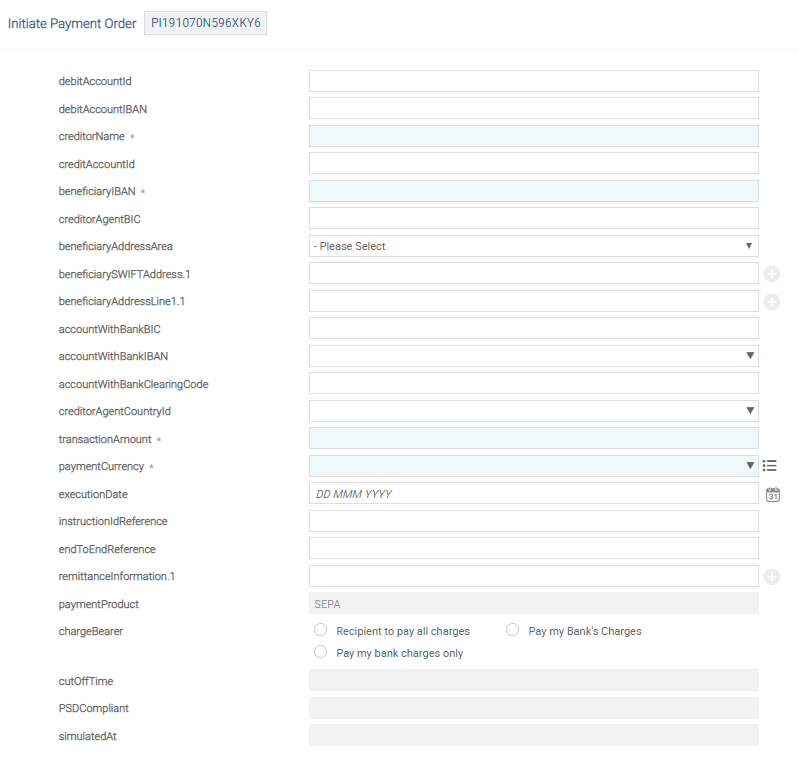

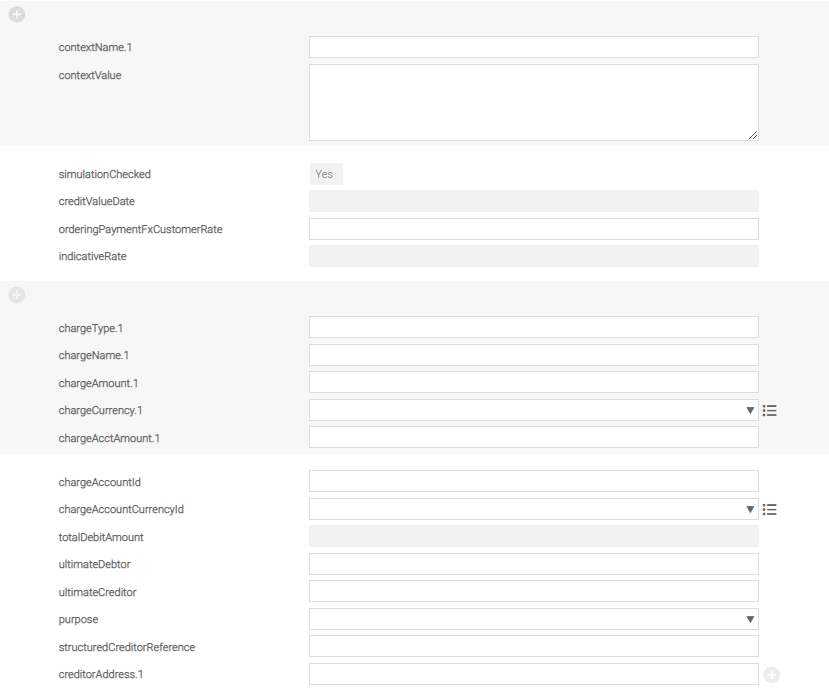

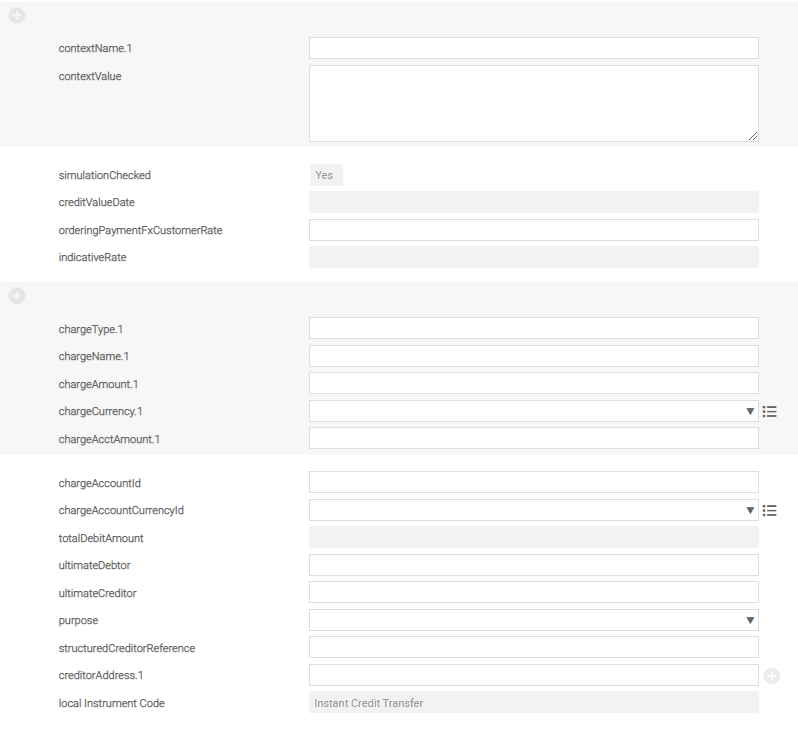

The version fields are given below:

Provider Field Name (Screen Name) Underlying Temenos Transact Field
debitAccountId DEBIT.ACCOUNT
debitAccountIBAN DEBIT.ACCOUNT.IBAN
creditorName BENEFICIARY.NAME
creditAccountId BENEFICIARY.ACCOUNT.NO
beneficiaryIBAN BENEFICIARY.IBAN
creditorAgentBIC BENEFICIARY.BIC
beneficiaryAddressArea BEN.POST.ADDRESS.TYPE
beneficiarySWIFTAddress BEN.POST.SWIFT.ADDR
beneficiaryAddressLine1 BEN.POST.ADDR.LINE
accountWithBankBIC ACCT.WITH.BANK.BIC
accountWithBankIBAN ACCT.WITH.BANK.IDENTIFIER
accountWithBankClearingCode ACCT.WITH.BANK.CLEARING.CODE
creditorAgentCountryId ACCT.WITH.BANK.COUNTRY
transactionAmount PAYMENT.AMOUNT
paymentCurrency PAYMENT.CURRENCY
executionDate PAYMENT.EXECUTION.DATE
instructionIdReference INSTRUCTION.ID.REF
endToEndReference END.TO.END.REFERENCE
remittanceInformation REMITTANCE.INFORMATION
paymentProduct = SEPA PAYMENT.ORDER.PRODUCT (defaulted to SEPA in this VERSION)
chargeBearer CHARGE.BEARER
cutOffTime CUT.OFF.TIME
PSDCompliant PSD.COMPLIANT
simulatedAt LAST.TC.SIM.TIME
contextName CONTEXT.NAME
contextValue CONTEXT.VALUE
simulationChecked TC.SIM.CHECKED
creditValueDate CREDIT.VALUE.DATE
orderingPaymentFxCustomerRate ORDERING.PAYMENT.FX.CUST.RATE
indicativeRate INDICATIVE.RATE
chargeType CHARGE.TYPE
chargeName CHARGE.DESCRIPTION
chargeAmount CHARGE.AMOUNT
chargeCurrency CHARGE.CURRENCY
chargeAcctAmount CHARGE.AC.CCY.AMOUNT
chargeAccountId CHARGE.ACCOUNT
chargeAccountCurrencyId CHARGE.ACCOUNT.CCY
totalDebitAmount TOTAL.DEBIT.AMOUNT
ultimateDebtor ULTIMATE.DEBTOR.NAME
ultimateCreditor ULTMATE.CREDITOR.NAME
purpose PAYMENT.PURPOSE
structuredCreditorReference STRUCTURED.CREDITOR.REFERENCE
creditorAddress ULTIMATE.CRED.ADDR.LINE

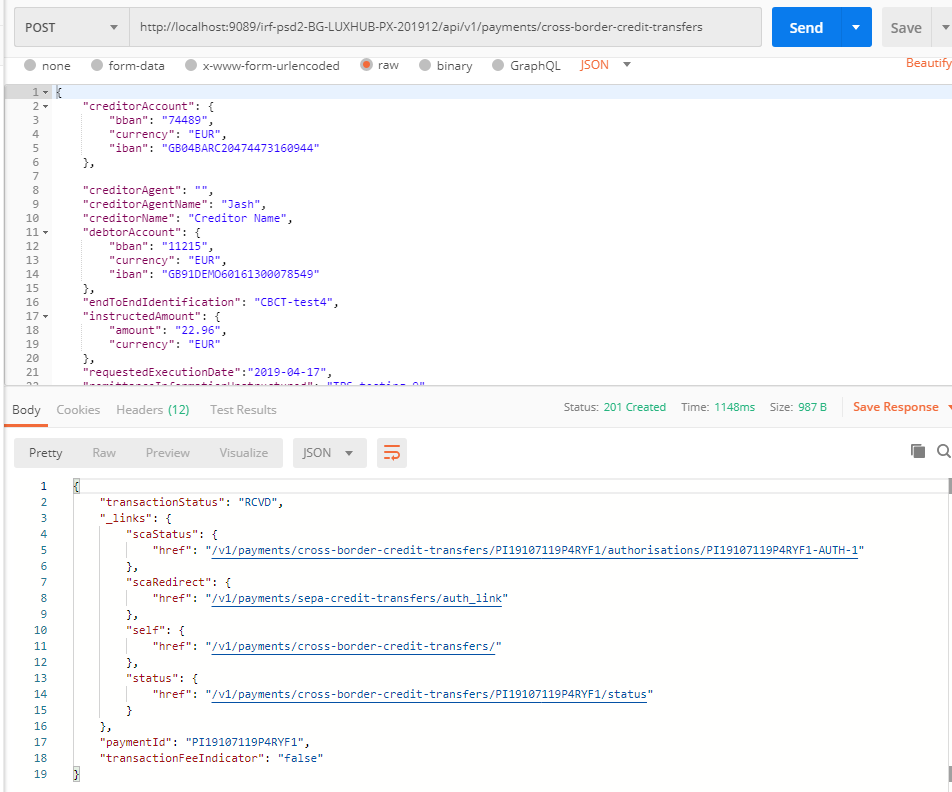

The payment for a single Cross-Border payment is initiated using the above endpoint.

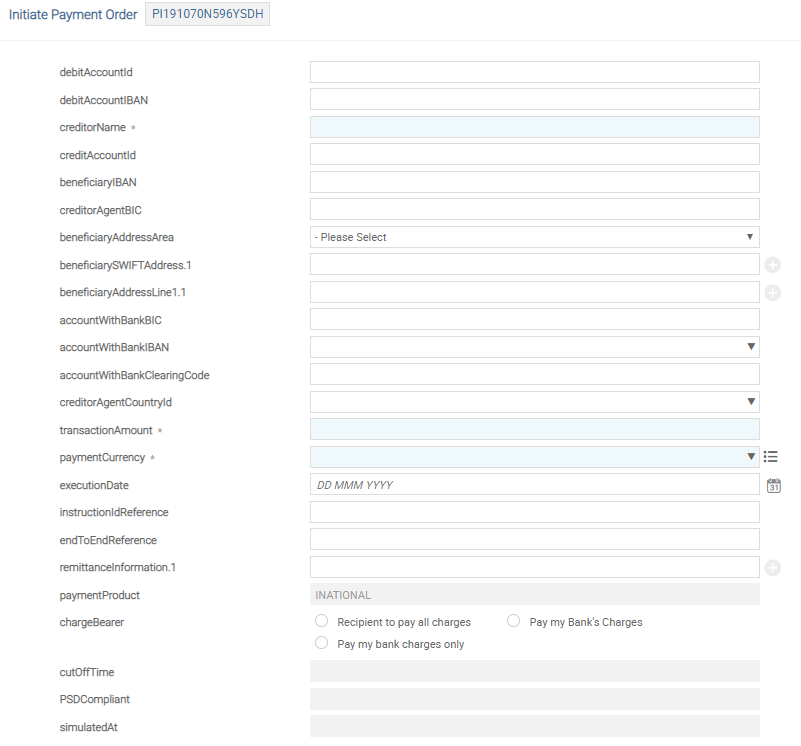

The PO created from this endpoint uses the following version:

  • PAYMENT.ORDER,PX.API.PAYMENT.INITIATE.CBCT.1.1.0

The incoming API directly populates this version.

This API creates a PAYMENT.ORDER record in LIVE with a status of ‘AwaitingExtSubmit’.

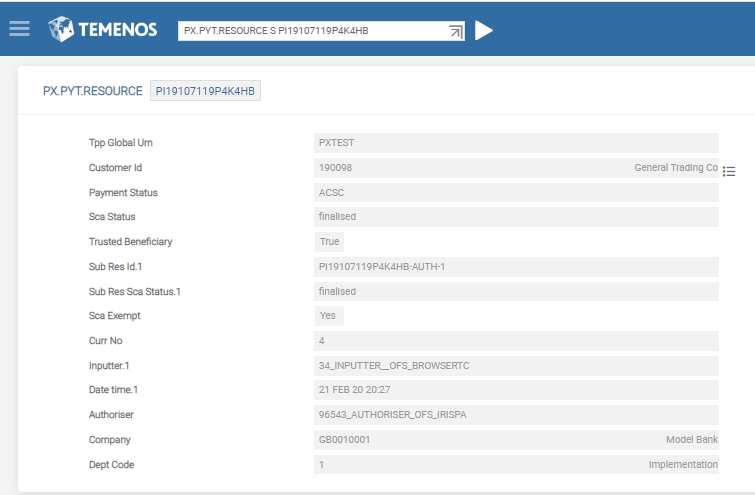

In parallel, the system additionally creates a PX.PYT.RESOURCE record with a corresponding Payment ID.

The system randomly generates the @ID of the record.

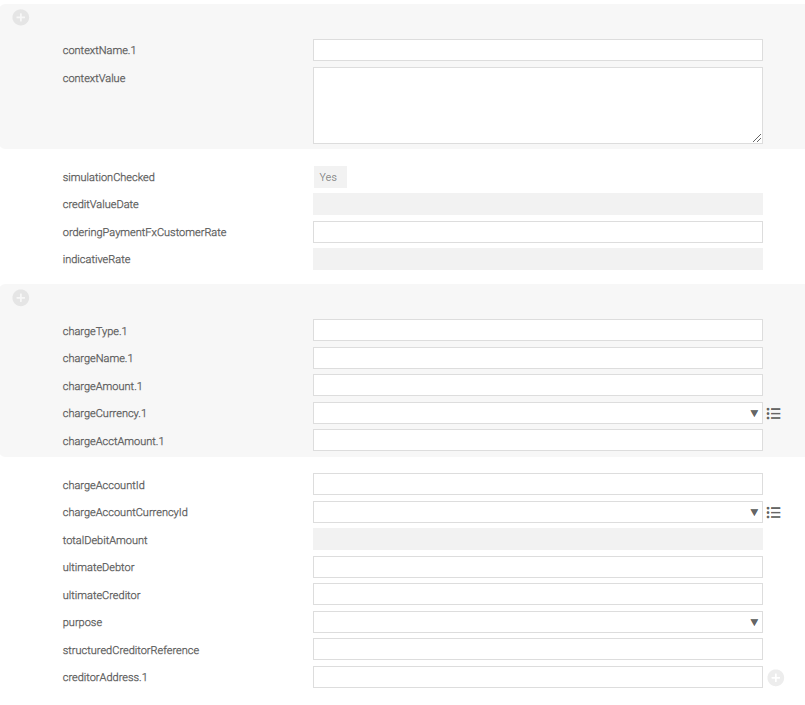

The version fields are given below:

Provider Field Name (Screen Name) Underlying Temenos Transact Field
debitAccountId DEBIT.ACCOUNT
debitAccountIBAN DEBIT.ACCOUNT.IBAN
creditorName BENFICIARY.NAME
creditAccountId BENEFICIARY.ACCOUNT.NO
beneficiaryIBAN BENEFICIARY.IBAN
creditorAgentBIC BENEFICIARY.BIC
beneficiaryAddressArea BEN.POST.ADDR.TYPE
beneficiarySWIFTAddress BEN.POST.SWIFT.ADDR
beneficiaryAddressLine1 BEN.POST.ADDR.LINE
accountWithBankBIC ACCT.WITH.BANK.BIC
accountWithBankIBAN ACCT.WITH.BANK.IDENTIFIER
accountWithBankClearingCode ACCT.WITH.BANK.CLEARING.CODE
creditorAgentCountryId ACCT.WITH.BANK.COUNTRY
transactionAmount PAYMENT.AMOUNT
paymentCurrency PAYMENT.CURRENCY
executionDate PAYMENT.EXECUTION.DATE
instructionIdReference INSTRUCTION.ID.REF
endToEndReference ED.TO.END.REFERENCE
remittanceInformation REMITTANCE.INFORMATION
paymentProduct = INATIONAL PAYMENT.ORDER.PRODUCT (defaulted to INATIONAL in this version)
chargeBearer CHARGE.BEARER
cutOffTime CUT.OFF.TIME
PSDCompliant PSD.COMPLIANT
simulatedAt LAST.TC.SIM.TIME
contextName CONTEXT.NAME
contextValue CONTEXT.VALUE
simulationChecked TC.SIM.CHECKED
creditValueDate CREDIT.VALUE.DATE
orderingPaymentFxCustomerRate ORDERING.PAYMENT.FX.CUST.RATE
indicativeRate INDICATIVE.RATE
chargeType CHARGE.TYPE
chargeName CHARGE.DESCRIPTION
chargeAmount CHARGE.AMOUNT
chargeCurrency CHARGE.CURRENCY
chargeAcctAmount CHARGE.AMOUNT
chargeAccountId CHARGE.ACCOUNT
chargeAccountCurrencyId CHARGE.ACCOUNT.CCY
totalDebitAmount TOTAL.DEBIT.AMOUNT
ultimateDebtor ULTIMATE.DEBTOR.NAME
ultimateCreditor ULTIMATE.CREDITOR.NAME
purpose PURPOSE
structuredCreditorReference STRUCTURED.CREDITOR.REFERENCE
creditorAddress ULTIMATE.CRED.ADDR.LINE

Incoming API

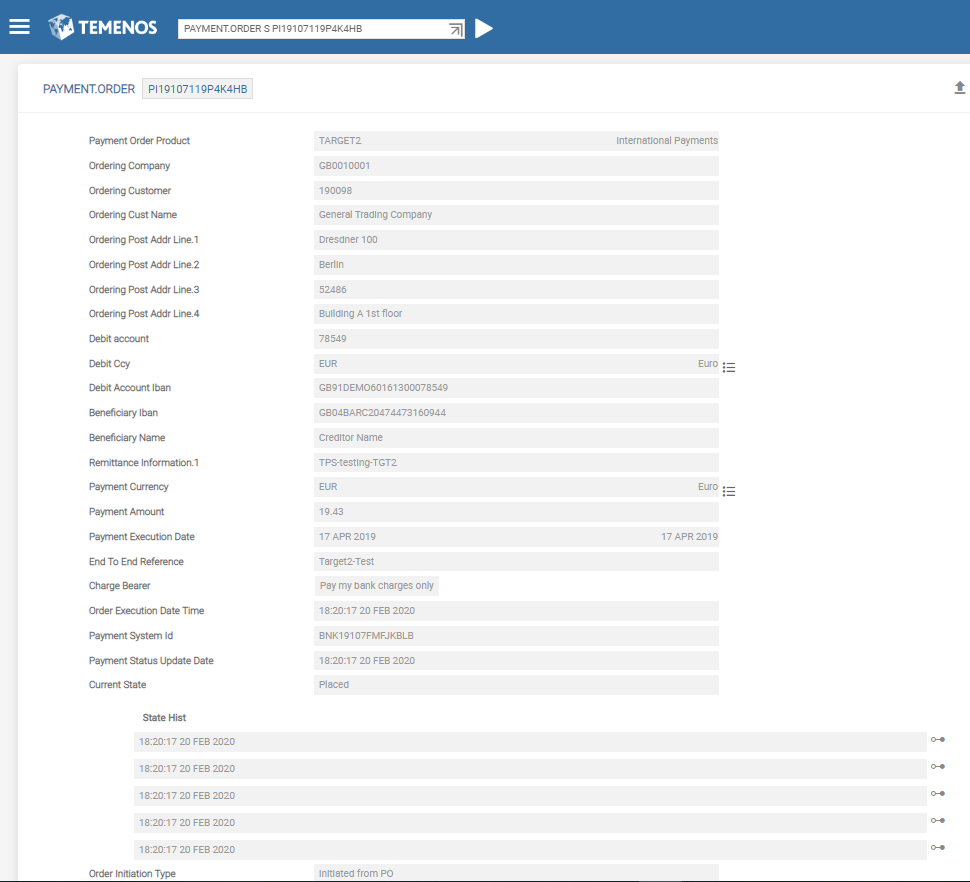

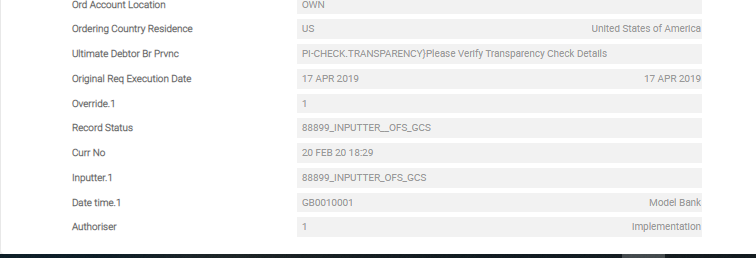

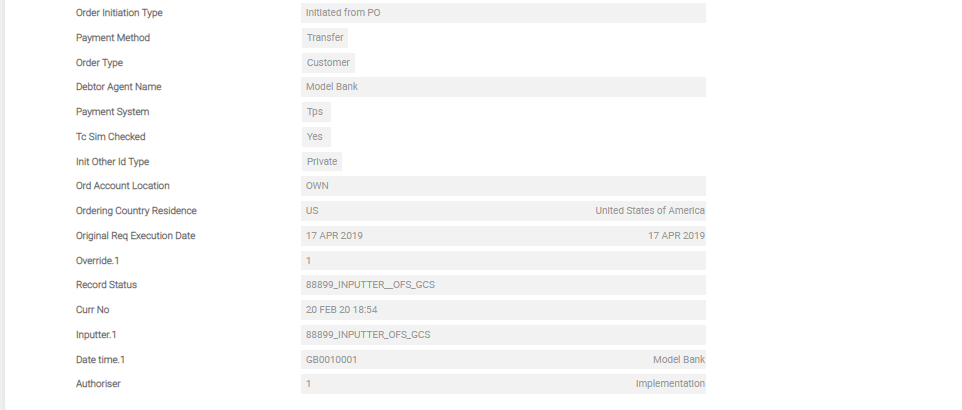

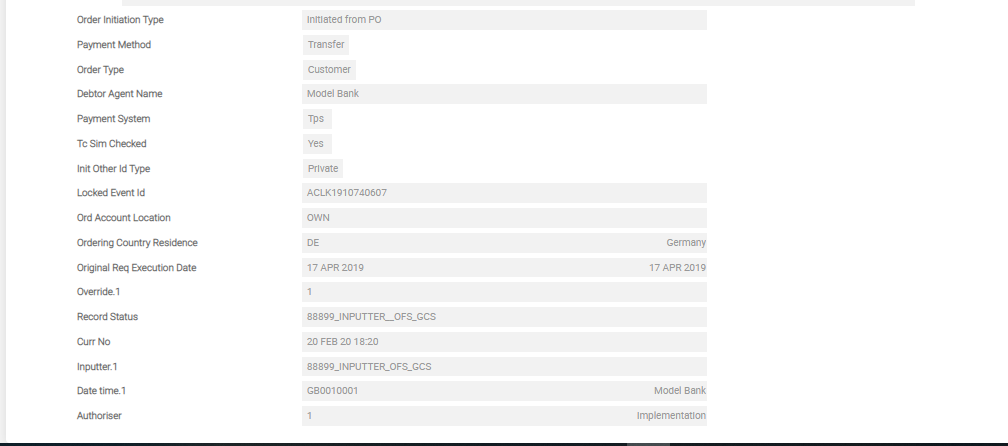

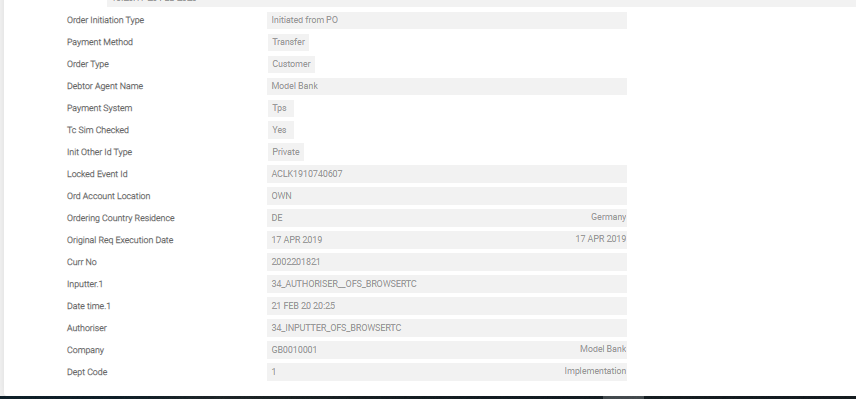

PAYMENT.ORDER Record

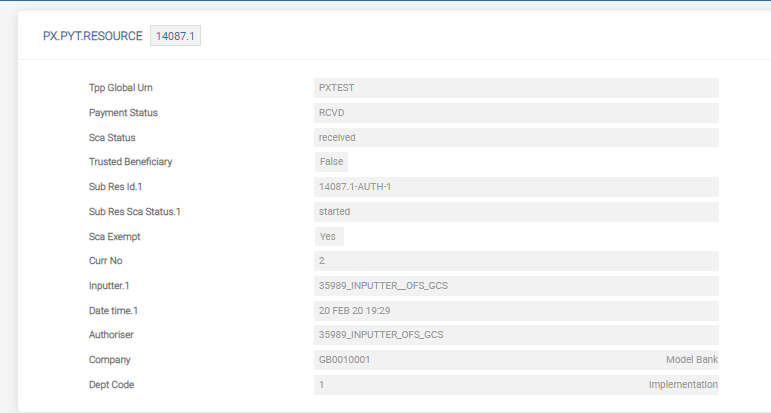

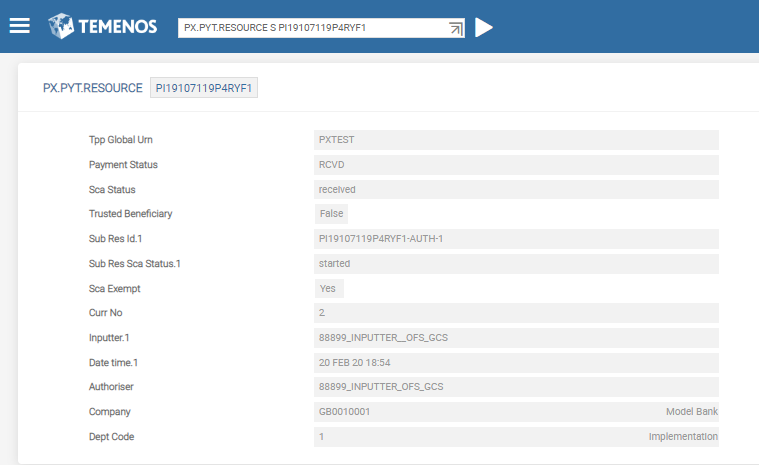

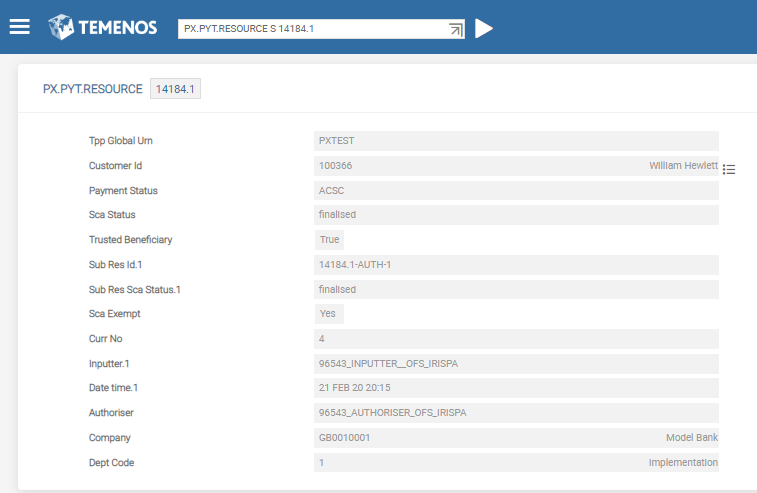

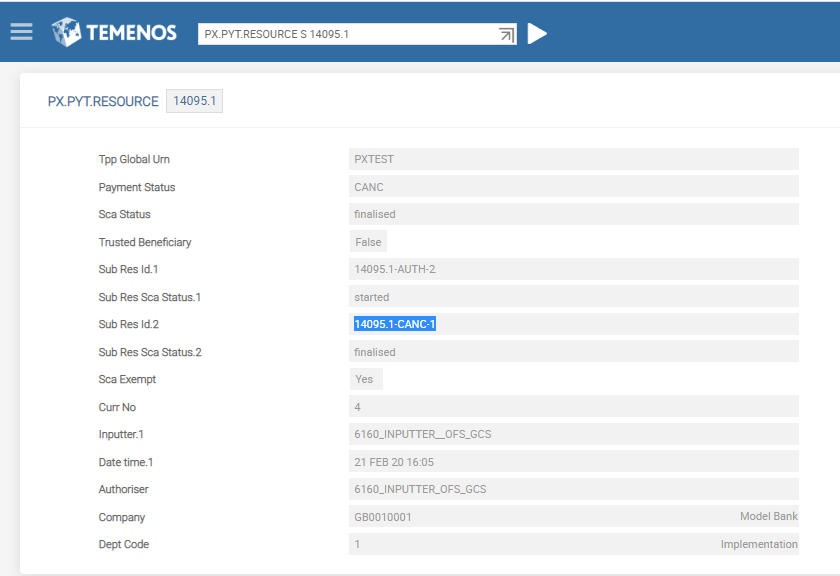

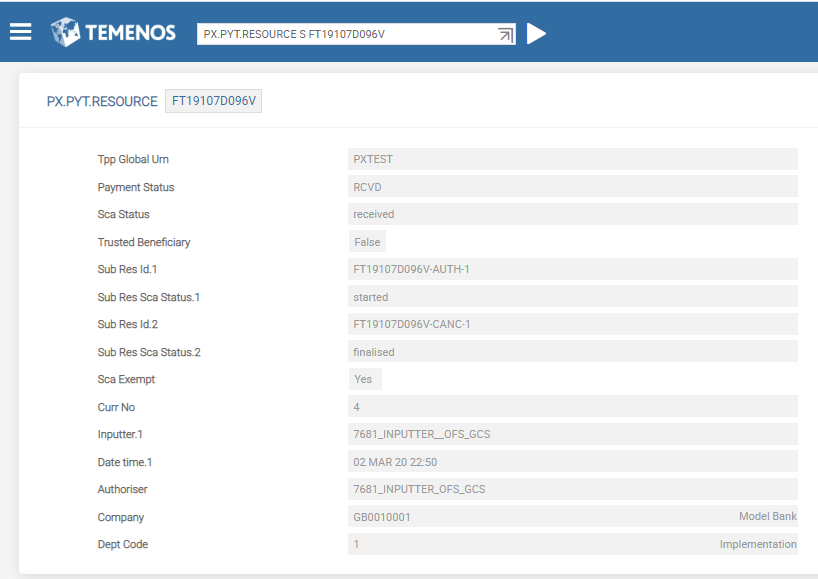

PX.PYT.RESOURCE Record

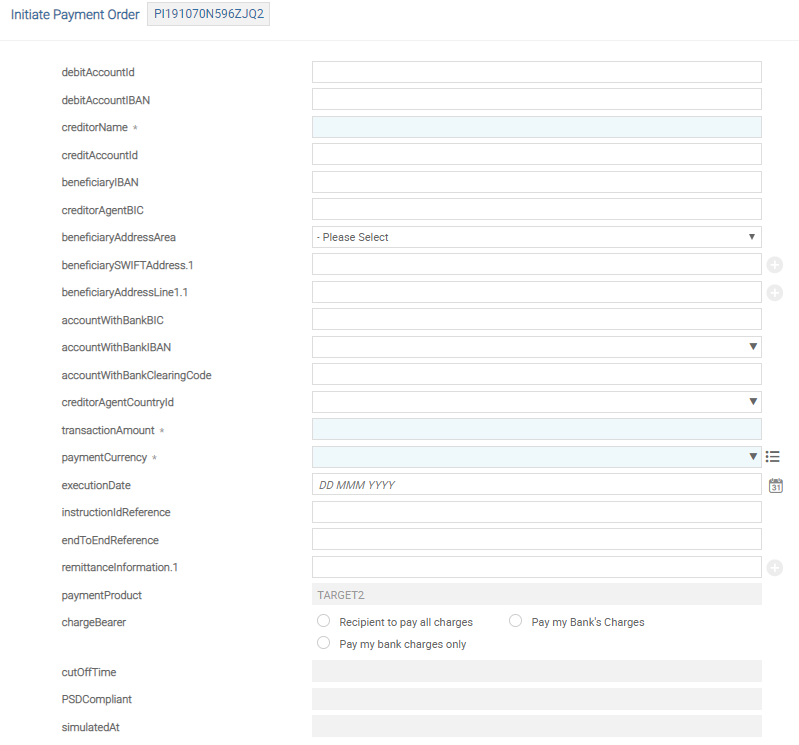

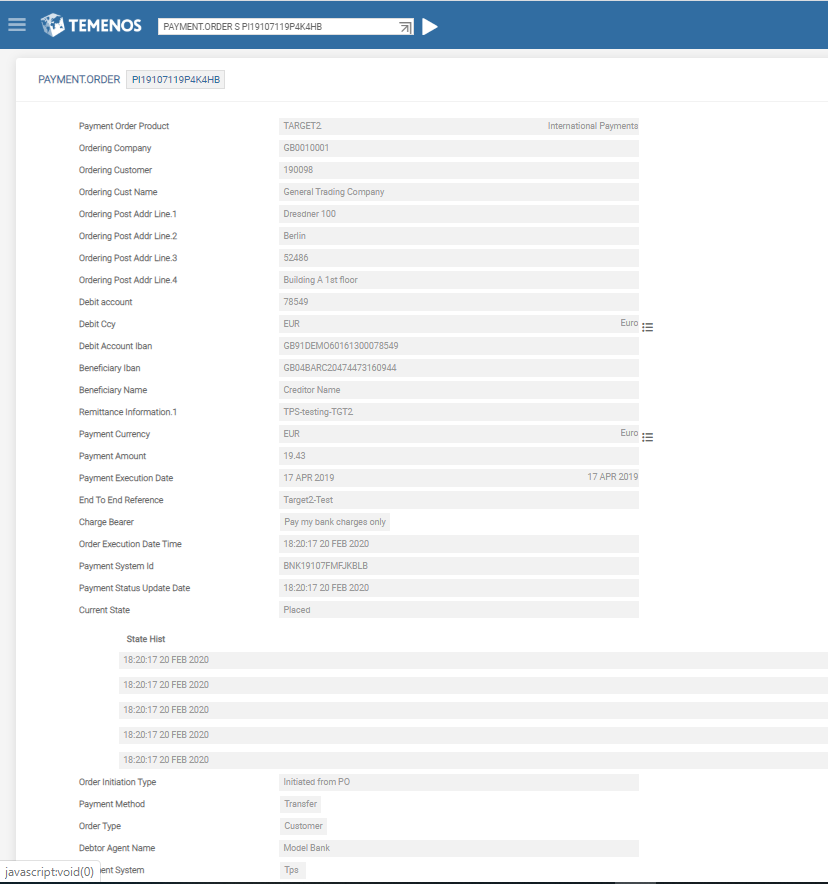

The payment for a single Target 2 payment is initiated using the above endpoint.

The PO created from this endpoint uses the below version:

  • PAYMENT.ORDER,PX.API.PAYMENT.INITIATE.TGT.1.1.0

The incoming API directly populates this version.

This API creates a PAYMENT.ORDER record in LIVE with a status of ‘AwaitingExtSubmit’.

In parallel, the system additionally creates a PX.PYT.RESOURCE record with a corresponding Payment ID.

The system randomly generates the @ID of the record.

The version fields are given below:

Provider Field Name (Screen Name) Underlying Temenos Transact Field
debitAccountId DEBIT.ACCOUNT
debitAccountIBAN DEBIT.ACCOUNT.IBAN
creditorName BENEFICIARY.NAME
creditAccountId BENEFICIARY.ACCOUNT.NO
beneficiaryIBAN BENEFICIARY.IBAN
creditorAgentBIC BENEFICIARY.BIC
beneficiaryAddressArea BEN.POST.ADDR.TYPE
beneficiarySWIFTAddress BEN.POST.SWIFT.ADDR
beneficiaryAddressLine BEN.POST.ADDR.LINE
accountWithBankBIC ACCT.WITH.BANK.BIC
accountWithBankIBAN ACCT.WITH.BANK.IDENTIFIER
accountWithBankClearingCode ACCT.WITH.BANK.CLEARING.CODE
creditorAgentCountryId ACCT.WITH.BANK.COUNTRY
transactionAmount PAYMENT.AMOUNT
paymentCurrency PAYMENT.CURRENCY
executionDate PAYMENT.EXECUTION.DATE
instructionIdReference INSTRUCTION.ID.REF
endToEndReference END.TO.END.REFERENCE
remittanceInformation REMITTANCE.INFORMATION
paymentProduct = TARGET2 PAYMENT.ORDER.PRODUCT (defaulted to TARGET2 in this VERSION)
chargeBearer CHARGE.BEARER
cutOffTime CUT.OFF.TIME
PSDCompliant PSD.COMPLIANT
simulatedAt LAST.TC.SIM.TIME
contextName CONTEXT.NAME
contextValue CONTEXT.VALUE
simulationChecked TC.SIM.CHECKED
creditValueDate CREDIT.VALUE.DATE
orderingPaymentFxCustomerRate ORDERING.PAYMENT.FX.CUST.RATE
indicativeRate INDICATIVE.RATE
chargeType CHARGE.TYPE
chargeName CHARGE.DESCRIPTION
chargeAmount CHARGE.AMOUNT
chargeCurrency CHARGE.CURRENCY
chargeAcctAmount CHARGE.AC.CCY.AMOUNT
chargeAccountId CHARGE.ACCOUNT
chargeAccountCurrencyId CHARGE.ACCOUNT.CCY
totalDebitAmount TOTAL.DEBIT.AMOUNT
ultimateDebtor ULTIMATE.DEBTOR.NAME
ultimateCreditor ULTIMATE.CREDITOR.NAME
purpose PAYMENT.PURPOSE
structuredCreditorReference STRUCTURED.CREDITOR.REFERENCE
CreditorAddress ULTIMATE.CRED.ADDR.LINE

Incoming API

PAYMENT.ORDER Record

PX.PYT.RESOURCE Record

The payment for a single instant SEPA payment is initiated using the above endpoint.

The PO created from this endpoint uses the below version:

  • PAYMENT.ORDER,PX.API.PAYMENT.INITIATE.INSTPAY.1.1.0

The incoming API directly populates this version.

This API creates a PAYMENT.ORDER record in LIVE with a status of ‘AwaitingExtSubmit’.

In parallel, the system additionally creates a PX.PYT.RESOURCE record with a corresponding Payment ID.

The system randomly generates the @ID of the record.

The version fields are given below:

Provider Field Name (Screen Name) Underlying Temenos Transact Field
debitAccountId DEBIT.ACCOUNT
debitAccountIBAN DEBIT.ACCOUNT.IBAN
creditorName BENEFICIARY.NAME
creditAccountId BENEFICIARY.ACCOUNT.NO
beneficiaryIBAN BENEFICIARY.IBAN
creditorAgentBIC BENEFICIARY.BIC
beneficiaryAddressArea BEN.POST.ADDR.TYPE
beneficiarySWIFTAddress BEN.POST.SWIFT.ADDR
beneficiaryAddressLine BEN.POST.ADDR.LINE
accountWithBankBIC ACCT.WITH.BANK.BIC
accountWithBankIBAN ACCT.WITH.BANK.IDENTIFIER
accountWithBankClearingCode ACCT.WITH.BANK.CLEARING.CODE
creditorAgentCountryId ACCT.WITH.BANK.COUNTRY
transactionAmount PAYMENT.AMOUNT
paymentCurrency PAYMENT.CURRENCY
executionDate PAYMENT.EXECUTION.DATE
instructionIdReference INSTURCTION.ID.REF
endToEndReference END.TO.END.REFERENCE
remittanceInformation REMITTANCE.INFORMATION
paymentProduct PAYMENT.ORDER.PRODUCT (defaulted to INSTPAY in this VERSION)
chargeBearer CHARGE.BEARER
cutOffTime CUT.OFF.TIME
PSDCompliant PSD.COMPLIANT
simulatedAt LAST.TC.SIM.TIME
contextName CONTEXT.NAME
contextValue CONTEXT.VALUE
simulationChecked TC.SIM.CHECKED
creditValueDate CREDIT.VALUE.DATE
orderingPaymentFxCustomerRate ORDERING.PAYMENT.FX.CUST.RATE
indicativeRate INDICATIVE.RATE
chargeType CHARGE.TYPE
chargeName CHARGE.DESCRIPTION
chargeAmount CHARGE.AMOUNT
chargeCurrency CHARGE.CURRENCY
chargeAcctAmount CHARGE.AC.ACCT.AMOUNT
chargeAccountId CHARGE.ACCOUNT
chargeAccountCurrencyId CHARGE.ACCOUNT.CCY
totalDebitAmount TOTAL.DEBIT.AMOUNT
ultimateDebtor ULTIMATE.DEBTOR.NAME
ultimateCreditor ULTIMATE.CREDITOR.NAME
purpose PAYMENT.PURPOSE
structuredCreditorReference STRUCTURED.CREDITOR.REFERENCE
creditorAddress ULTIMATE.CRED.ADDR.LN
local Instrument Code LOCAL.INST.CODE (defaulted to Instant Credit Transfer In VERSION)

Incoming API

PAYMENT.ORDER Record

PX.PYT.RESOURCE Record

As part of standard Temenos Transact functionality, on creation of the payment from STANDING.ORDER using PAYMENT.ORDER (depending on the payment system of the bank), the relevant payment record is created.

When the standing order record is created using a PSD2 API, the Created Externally field in the STANDING.ORDER application is set as 'Yes'. This identifies that the payment has been created by an external Third-Party Provider (TPP).

When a POST/period-payment/{payments} API is sent, even when the banks payment system is PO, the system creates a record in STANDING.ORDER.

The payment for a SEPA Standing Order is initiated using the above endpoint.

The SEPA Standing Order created from this endpoint uses the following version.

  • STANDING.ORDER,PX.API.SEPA.ONHOLD.1.0.0

    • Standing Order Record

The incoming API directly populates this version.

This API creates a STANDING.ORDER record in IHLD.

In parallel, the system additionally creates a PX.PYT.RESOURCE record with a corresponding Payment ID.

The @ID of the Standing Order record is the account number followed by a sequence number.

The version fields are given below:

Provider Field Name (Screen Name) Underlying Temenos Transact Field
endToEndReference END.TO.END.REFERENCE
BIC ACCT.WITH.BANK
ultimateCreditor BEN.NAME
beneficiaryAddress BEN.ADDRESS
instructionIdReference PAYMENT.PURPOSE
paymentDetail PAYMENT.DETAILS
currentFrequencyDate CURRENT.FREQUENCY
currentEndDate CURRENT.END.DATE
debitCurrency CURRENCY
currentAmountBalance CURRENT.AMOUNT.BAL
beneficiaryOurCharges BEN.OUR.CHARGES
startDate START.DATE
createExternally CREATED.EXTERNALLY
paymentProduct PO.PRD.NAME
dateAdjustment DATE.ADJUSTMENT

Incoming API

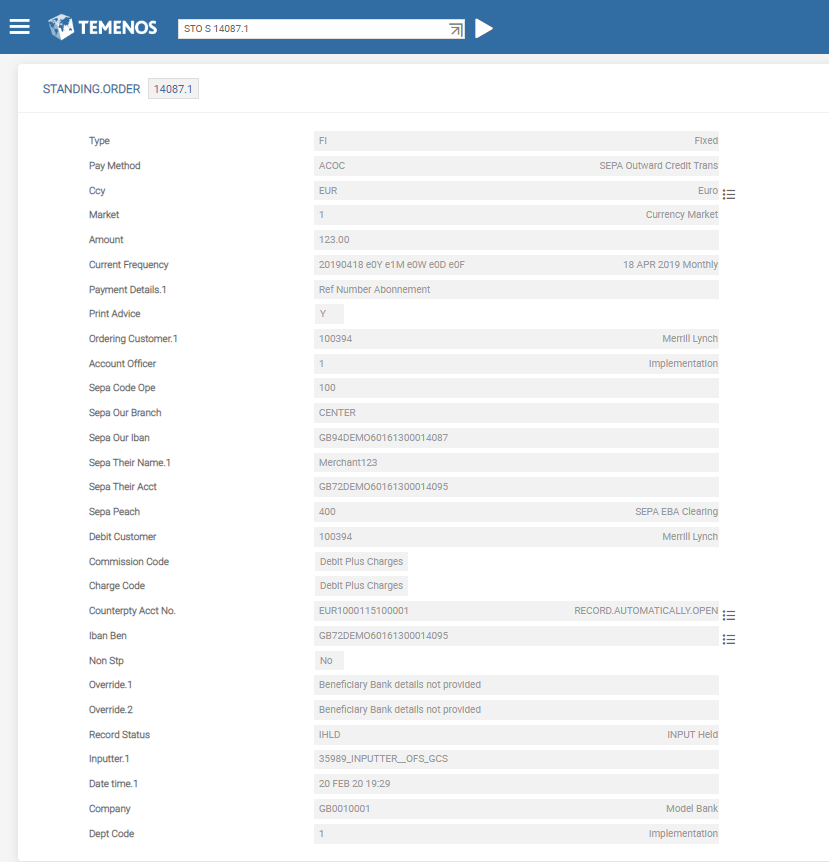

STANDING.ORDER Record

PX.PYT.RESOURCE Record

The payment of a Cross-Border Standing Order is initiated using the above endpoint.

The Cross-Border Standing Order created from this endpoint uses the following version:

  • STANDING.ORDER,PX.API.CB.ONHOLD.1.0.0

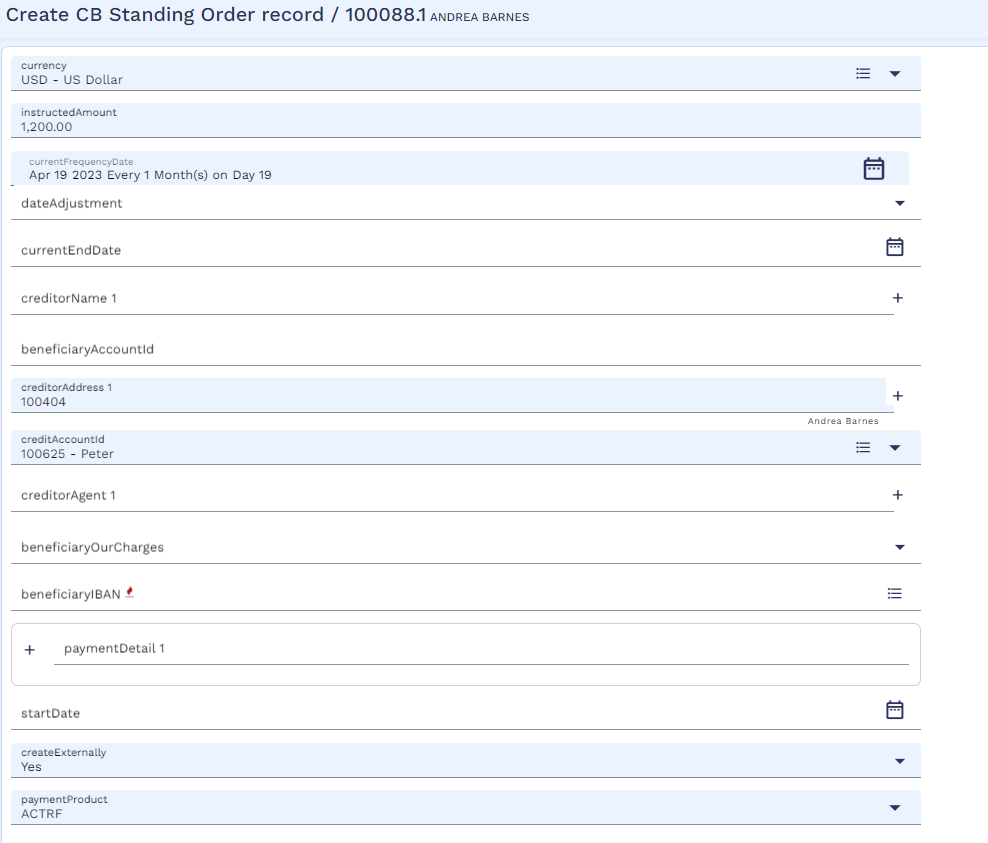

    • Creating CB STO Record

The incoming API directly populates this version.

This API creates a STANDING.ORDER record in IHLD.

In parallel, the system additionally creates a PX.PYT.RESOURCE record with a corresponding Payment ID.

The Standing Order @ID of the record is the account number followed by a sequence number.

The version fields are given below:

Provider Field Name (Screen Name) Underlying Temenos Transact Field
currency CURRENCY
instructedAmount CURRENT.AMOUNT.BAL
currentFrequencyDate CURRENT.FREQUENCY
dateAdjustment DATE.ADJUSTMENT
currentEndDate CURRENT.END.DATE
creditorName BENEFICIARY
beneficiaryAccountId BEN.ACCT.NO
creditorAddress ORDERING.CUST
creditAccountId CPTY.ACCT.NO
creditorAgent ACCT.WITH.BANK
beneficiaryOurCharges BEN.OUR.CHARGES
beneficiaryIBAN IBAN.BEN
paymentDetail PAYMENT.DETAILS
startDate START.DATE
createExternally CREATED.EXTERNALLY
paymentProduct PO.PRD.NAME

Incoming API

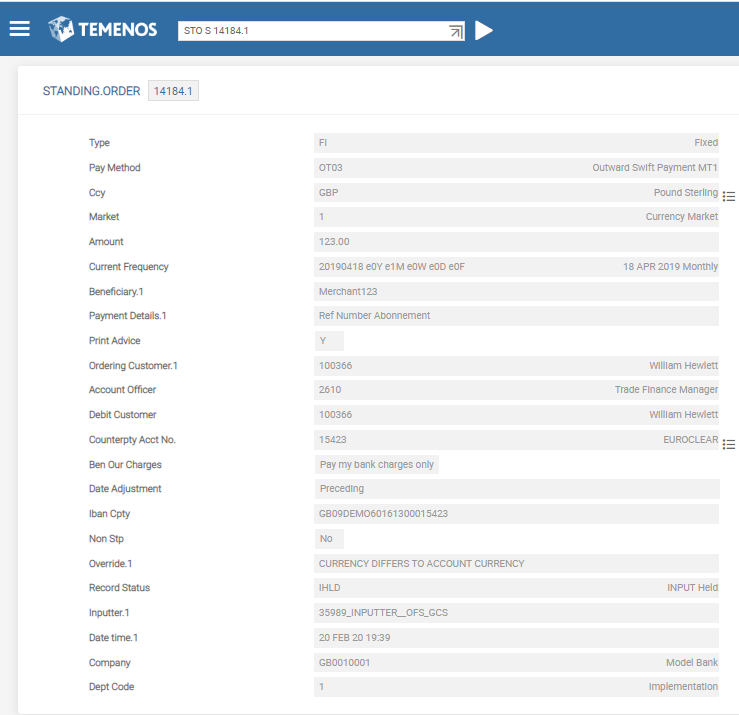

STANDING.ORDER Record

PX.PYT.RESOURCE Record

When a bulk payment is initiated by a PSD2 payment initiation API, the Originating Source field is populated with the value 'TPP', indicating that the bulk payment record has been initiated by a Third-Party Provider.

Payment Approval

If the user successfully authenticates and confirms the payment through the User Interface, the Payment Submit API (which is an internal API call), authorises the corresponding payment record in Temenos Transact and updates the payment status in PX.PYT.RESOURCE.

The PAYMENT.ORDER,PX.API.SUBMIT.PAYMENT.1.1.0 version is used to authorise the record in PAYMENT.ORDER. The record remains in LIVE and the system updates the status to ACSP in the record in PX.PYT.RESOURCE.

An internal API call from the User Interface (where the user confirms the payment) populates this API directly.

This version does not require input to any field. The incoming endpoint uses the A (Authorise) function. The version is zero authoriser.

Incoming API

PAYMENT.ORDER Record

PX.PYT.RESOURCE Record

The STANDING.ORDER,PX.API.SUBMIT.1.0.0 version is used to authorise the STANDING.ORDER record. The record moves to LIVE and the system updates the status in PX.PYT.RESOURCE to ‘ACWP’.

An internal API call from the User Interface (where the user confirms the payment) populates this API directly.

This version does not require input to any field. The incoming endpoint uses the A (Authorise) function. The version is zero authoriser.

Incoming API

STANDING.ORDER Record

PX.PYT.RESOURCE Record

For Payment Cancellation, Payment Details and Payment Status flows, the system performs a mandatory check of real-time user permissions, before acknowledging the request.

Payment Deletion API

An underlying Payment Deletion can be performed in two instances when:

  • The user cancels the payment in the User Interface.
  • The TPP sends the DELETE/v1/{payment-service}/{payment-product}/{paymentId} request.

This API cancels the payment in Temenos Transact and updates the payment accordingly.

The corresponding PX.PYT.RESOURCE record status is updated to ‘CANC’ either by the User Interface (if cancelled using the User Interface) or through an API call when cancelled using the TPP (using the DELETE API).

The actual Payment Record (STANDING.ORDER/PAYMENT.ORDER record) is marked as cancelled accordingly.

Application Action in Temenos Transact
PAYMENT.ORDER Record remains in LIVE
Order Status is updated to CANCELLED.
Resource record status updated to ‘CANC’.

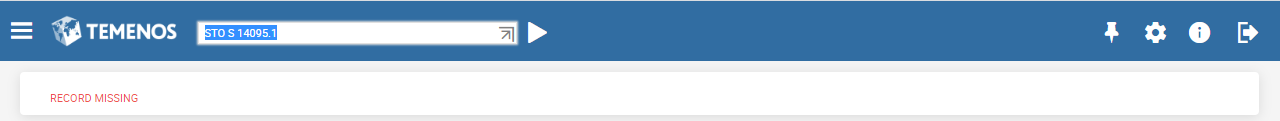

STANDING.ORDER Record deleted
Resource record status updated to ‘CANC’.

The system logic related to cancellation of payment records is as follows:

  • PAYMENT.ORDER can only be cancelled before the payment is moved to the payment system (when Order Status is PLACED).
  • STANDING.ORDER can only be cancelled if the payment is in INAU.
  1. Incoming API is sent from TPP.

  2. The payment record is deleted.

  3. The status is updated to CANC in PX.PYT.RESOURCE.

The PAYMENT.ORDER,PX.API.CANCEL.1.0.0 version is used to cancel the record in PAYMENT.ORDER.

The record remains in LIVE. The system updates the status to CANCELLED and updates the status to ‘CANC’ in the record in PX.PYT.RESOURCE.

The STANDING.ORDER,PX.API.CANCEL.1.0.0 version is used to cancel the record in STANDING.ORDER.

This version does not require input to any field. The incoming endpoint uses the D (Delete) function. The version is zero authoriser. The system deletes the record and updates the status in PX.PYT.RESOURCE to ‘CANC’.

Payment Details API

A regulated TPP can request the details of a payment using the GET/v1/{payment-service}/{payment-product}/{paymentId} request. This call from the TPP retrieves the details of the specified Payment ID.

The system checks whether the TPP making the payment details request is the same as the TPP initiating the payment.

The underlying enquiry for both the Payment Details and Payment Status APIs is the same. The Published API fetches the relevant information needed for each call from the same dataset.

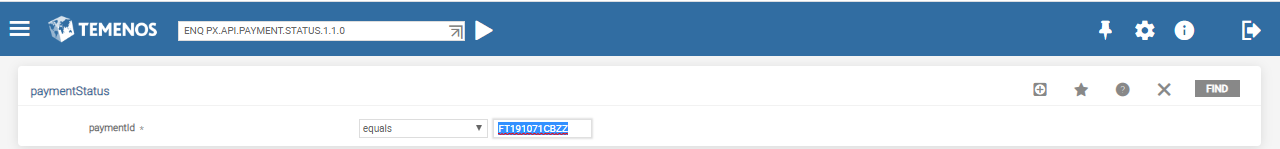

The PX.API.PAYMENT.STATUS.1.1.0 enquiry is used to retrieve the relevant information for records that are created by TPPs for the following applications:

  • PAYMENT.ORDER
  • STANDING.ORDER

The {paymentId} parameter holds the ID of the payment. It allows a value of PAYMENT.ORDER and STANDING.ORDER @ID.

API Response

Field Description
paymentId This is the @ID of the payment created. Allows a valid STO or PO ID.

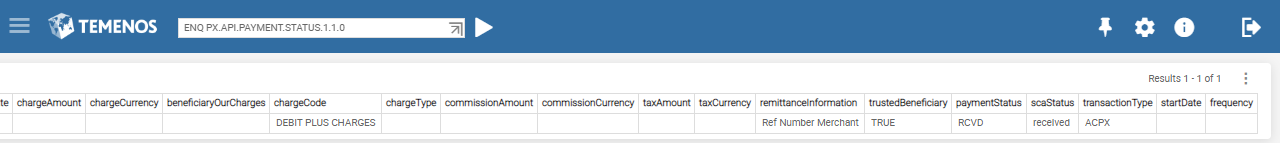

The system returns the following details:

Payment Status API

A regulated TPP checks the status of a payment using the GET/v1/{payment-service}/{payment-product}/{paymentId}/status request. This call from the TPP retrieves the status of the specified payment ID.

The system checks whether the TPP making the status request is the same as the TPP initiating the payment.

The underlying enquiry for both the Payment Details and Payment Status APIs is the same. The incoming Published API fetches the relevant information needed for each call from the same dataset.

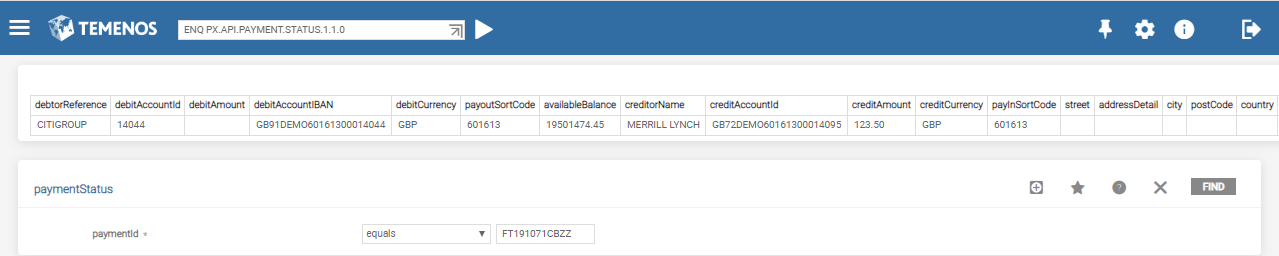

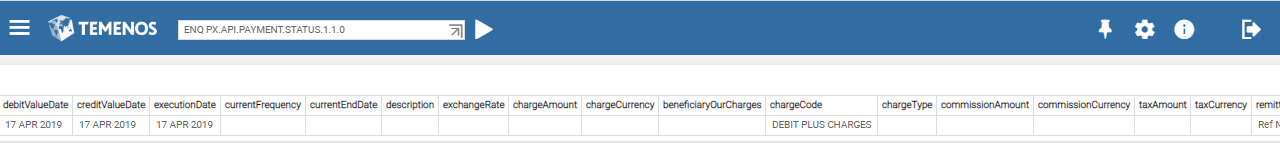

The system uses the PX.API.PAYMENT.STATUS.1.1.0 enquiry to retrieve the relevant status information for the following applications for records created by TPPs:

  • PAYMENT.ORDER
  • STANDING.ORDER

The {paymentId} parameter holds the ID of the payment. This allows a value of PAYMENT.ORDER and STANDING.ORDER @ID.

API Response

Field Description
paymentId This is the @ID of the payment, created. Allows a valid STO or PO ID.

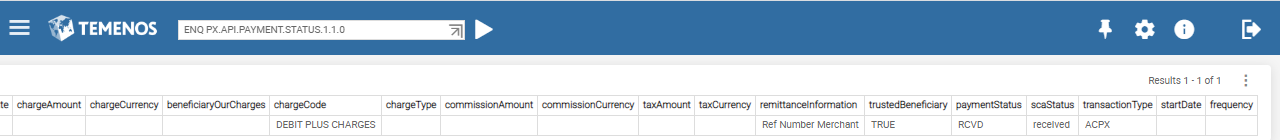

The system returns the following details:

Additional APIs Related to Implicit and Explicit Authorisation Flows

Some additional APIs are included in the Berlin Group v1.3.4 to support authorisations workflows.

In the payment workflow, for each authorisation needed for a payment, a sub-resource is required.

  • In the Implicit flow, this happens automatically.
  • In the Explicit workflow, the TPP sends a request to create a sub-resource. This is handled using the POST/v1/{payment-service}/{payment-product}/{paymentId}/authorisations endpoint.

The system uses the following version to update the record in PX.PYT.RESOURCE with the sub-resource details:

  • PX.PYT.RESOURCE,PX.API.UPDATE.1.0.0

The system creates an AUTH sub-resource.

In the payment workflow, for each authorisation needed to cancel a payment, a sub-resource is required.

  • In the Implicit flow, this happens automatically.
  • In the Explicit workflow, the TPP sends a request to create a sub-resource. This is handled using the POST/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations endpoint.

The system uses the following version to update the record in PX.PYT.RESOURCE with the sub-resource details:

  • PX.PYT.RESOURCE,PX.API.UPDATE.1.0.0

The system creates a CANC sub-resource.

A TPP can request the list of sub-resources linked to a payment, using the following endpoints:

GET/v1/{payment-service}/{payment-product}/{paymentId}/authorisations For AUTH sub-resources
GET/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations For CANC sub-resources

The details are fetched using the following enquiry:

  • PZ.API.BERLIN.1.3.SUB.RESOURCES.1.0.0

When a TPP makes a GET/v1/{payment-service}/{payment-product}/{paymentId}/authorisations, the list of AUTH sub-resources are returned for the payment.

Enquiry Response

The system fetches the data using the PZ.API.BERLIN.1.3.SUB.RESOURCES.1.0.0 enquiry.

API Response

When a TPP makes a GET/v1/{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations, the list of CANC sub-resources are returned for the payment.

Enquiry

The system fetches the data using the PZ.API.BERLIN.1.3.SUB.RESOURCES.1.0.0 enquiry.

API Response

A TPP can request the details of a given sub-resource. This can be for authorisations or cancellations achieved using the relevant endpoint below:

GET​/v1​/{payment-service}​/{payment-product}​/{paymentId}​/authorisations/{authorisationId} For AUTH sub-resources
GET​/v1​/{payment-service}​/{payment-product}​/{paymentId}​/cancellation-authorisations /{cancellationId} For CANC sub-resources

The details are fetched using the following enquiry:

  • PZ.API.BERLIN.1.3.SUB.RESOURCES.1.0.0

GET​/v1​/{payment-service}​/{payment-product}​/{paymentId}​/authorisations/{authorisatioId}

Enquiry

The data are fetched using the PZ.API.BERLIN.1.3.SUB.RESOURCES.1.0.0 enquiry.

API Response

GET​/v1​/{payment-service}​/{payment-product}​/{paymentId}​/cancellation-authorisations​/{cancellationId}

Enquiry

The data are fetched using the PZ. API.BERLIN.1.3.SUB.RESOURCES.1.0.0 enquiry.

API Response

Bulk Payment APIs

A regulated PISP can initiate a bulk payment using the POST/v1/{payment-service}/{payment-product} endpoint.

The parameters and values are explained below:

  • {payment-service} – Denotes bulk payment and is supported by Payment Order.
  • {payment-product} – Allowed values for payment order are:
    • sepa-credit-transfers
    • cross-border-credit-transfers
    • target2-payments
    • instant-sepa-credit-transfers
  • When the TPP requests to initiate a bulk payment through the openbanking gateway, the system creates a record in the FT.BULK.MASTER application, including the payment details sent by the TPP, with an IHLD (created) status. In addition to this, the system creates records in PAYMENT.ORDER with a LIVE (waitmaster) status for the payments related to the bulk.
  • After successfully creating the bulk record, the system sends the response with the FTBM ID to the Gateway.
  • The system updates the Originating Source field to TPP in the FT.BULK.MASTER application.
  • The system creates a record in the PX.PYT.RESOURCE application with the same ID as the FT.BULK.MASTER record, holding additional payment details, including the Payment Status as RCVD.

To assist the bulk payment initiation for PSD2, the following transact artefacts are available:

Operation Service XML Temenos Transact Artefact URL
createBulkMaster order-PSD2-payments.service.v2.0.0.xml

FT.BULK.MASTER,PX.API.BG.1.3.PAYMENT.INITIATE.1.0.0

v2.0.0/order/PSD2/bulkPayments/

paymentsInitiation
createInstantBulkPaymentOrder order-PSD2-payments.service.v2.0.0.xml PAYMENT.ORDER,PX.API.BULK.INITIATE.INSTPAY.1.0.0 v2.0.0/order/PSD2/bulkPayments/

paymentOrderInitiation/

instantPayment
createSepaBulkPaymentOrder order-PSD2-payments.service.v2.0.0.xml PAYMENT.ORDER,PX.API.BULK.INITIATE.SEPA.1.0.0 v2.0.0/order/PSD2/bulkPayments

/paymentOrderInitiation/

SEPA
createTgtBulkPaymentOrder order-PSD2-payments.service.v2.0.0.xml PAYMENT.ORDER,PX.API.BULK.INITIATE.TGT.1.0.0 v2.0.0/order/PSD2/bulkPayments/

paymentOrderInitiation/

target2
createCbctBulkPaymentOrder order-PSD2-payments.service.v2.0.0.xml PAYMENT.ORDER,PX.API.BULK.INITIATE.CBCT.1.0.0 v2.0.0/order/PSD2/bulkPayments/

paymentOrderInitiation/

crossBorder

Copyright © 2020- Temenos Headquarters SA

Contact Us

knowledge@temenos.com

Published on :
Sunday, March 23, 2025 1:04:42 PM IST
